Fault Finding Central Coast

Our Fault Finding Process

Common Electrical Faults

Circuit Breaker Tripping

Circuit breakers trip for specific reasons requiring systematic diagnosis. We investigate circuit breaker trips caused by overloaded circuits drawing excessive current, short circuits creating direct path between active and neutral, earth faults causing current leakage to earth, faulty circuit breakers failing prematurely, and loose connections creating arcing and heat. We test circuits measuring current draw, check for short circuits using insulation testers, verify earth continuity, and inspect connections for damage. For properties requiring switchboard upgrades, we coordinate fault finding with replacement.

RCD Safety Switch Trips

RCD trips indicate current leakage to earth requiring immediate attention. Common RCD trip causes include damaged cables allowing current to earth, faulty appliances with insulation breakdown, water ingress in electrical equipment, damaged power points or switches, and accumulation of minor leakage from multiple sources. We systematically isolate circuits identifying which circuit causes RCD trips, test individual appliances for earth leakage, measure insulation resistance throughout circuits, and inspect for moisture damage. RCD trips are safety warnings preventing electric shock - never ignore them. For urgent RCD faults, contact our emergency electrician.

Intermittent Electrical Faults

Intermittent faults prove most challenging as they occur sporadically. These include loose connections creating intermittent contact, damaged cables flexing causing intermittent shorts, temperature-dependent faults appearing when equipment heats, moisture-related faults during rain or humidity, and appliance faults occurring under certain conditions. We investigate intermittent faults by monitoring circuits over time, thermal imaging identifying hot connections, flexing cables revealing damaged insulation, and testing under fault conditions. Intermittent faults often worsen becoming permanent failures. For comprehensive electrical assessment, see our electrical safety inspection services.

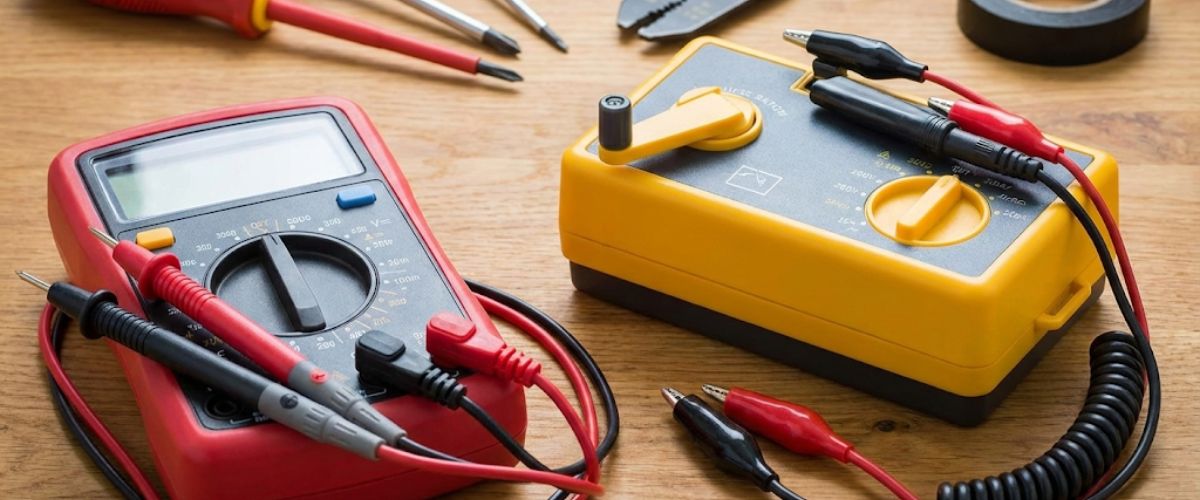

Diagnostic Testing Equipment

Multimeters

Multimeters measure voltage, current, and resistance essential for electrical diagnosis. We use multimeters to verify voltage at outlets and circuits, measure voltage drop indicating resistance problems, test continuity of cables and connections, check earth resistance, and measure appliance current draw. Digital multimeters provide accurate measurements quickly. True RMS multimeters measure AC voltage correctly even with distorted waveforms. Proper multimeter use requires electrical knowledge and training ensuring safe accurate testing.

Insulation Resistance Testers

Insulation testers apply high voltage measuring cable insulation condition. We use insulation testers (meggers) to test cable insulation resistance, identify deteriorating insulation, locate damaged cables, verify new cable installations, and confirm electrical safety before energising. Insulation testing reveals cable problems before they cause shorts or earth faults. Minimum insulation resistance varies by application but typically 1 megohm or higher indicates good insulation. Regular insulation testing identifies potential problems early.

Circuit Tracers and Cable Locators

Circuit tracers locate cables hidden in walls and ceilings. We use circuit tracers to identify which cables serve specific outlets, locate cable routes through walls, find breaks in buried cables, trace circuit paths, and identify cable termination points. Circuit tracing is essential when cables aren't labelled or documentation is missing. Cable locators also detect buried cables before excavation preventing accidental damage. For properties requiring house rewiring, circuit tracing identifies existing wiring.

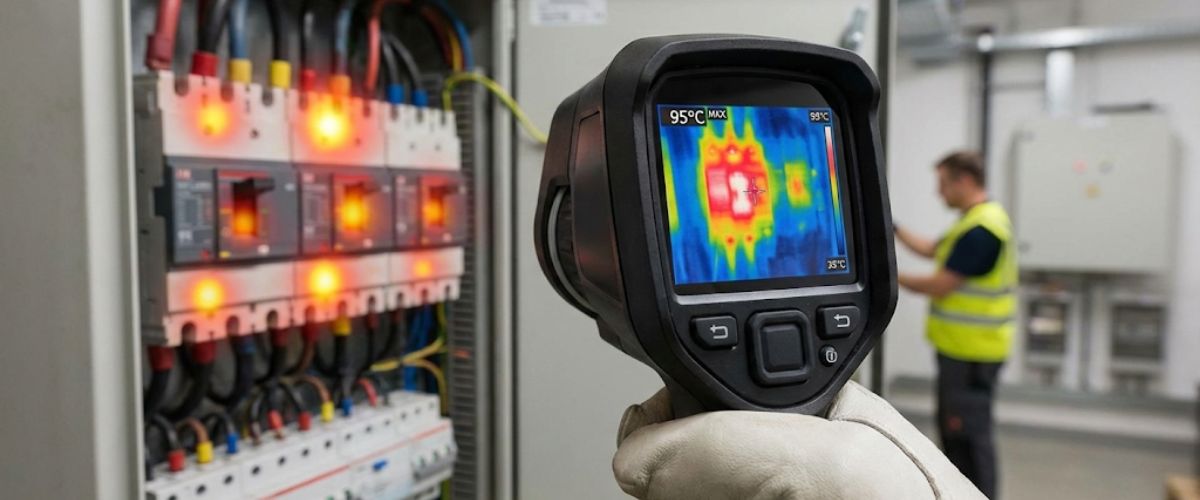

Thermal Imaging Cameras

Thermal imaging detects abnormal heat indicating electrical problems. We use thermal cameras to identify overheating connections, detect loose terminals, find overloaded circuits, locate faulty switchboard components, and check for balanced load distribution. Hot spots indicate increased resistance from loose connections, corrosion, or excessive current. Thermal imaging identifies problems before they cause failures or fires. Regular thermal scanning prevents electrical fires by detecting problems early.

Clamp Meters

Clamp meters measure current flow without breaking circuits. We use clamp meters to measure circuit current loads, verify balanced three-phase loading, identify neutral current problems, measure earth leakage current, and monitor appliance current draw. Clamp meters enable non-invasive current measurement. Comparing measured current with circuit ratings identifies overloading. Unbalanced three-phase loading wastes energy and causes problems. For three-phase systems, see our three-phase power services.

Systematic Fault Finding Approach

1. Gather Information

Effective fault finding begins with detailed information gathering including what symptoms occur and when, whether problems are constant or intermittent, any recent electrical work or changes, which circuits or appliances are affected, and any unusual sounds, smells, or visible signs. This information guides diagnostic approach focusing on likely fault areas. We ask specific questions helping narrow possibilities before testing begins.

2. Visual Inspection

Visual inspection often reveals obvious faults including burnt or discoloured connections, damaged cables or insulation, loose or corroded terminals, tripped breakers or blown fuses, and physical damage to electrical equipment. We inspect switchboards, outlets, fixtures, and equipment for visible problems. Many faults are immediately apparent during inspection saving diagnostic time. Never ignore visible electrical damage - it indicates hazards requiring immediate repair.

3. Initial Testing

We conduct initial electrical testing including voltage measurement at affected circuits, insulation testing identifying cable problems, earth continuity verification, circuit current measurement, and RCD trip time testing. Initial tests provide baseline information guiding further investigation. Test results indicate whether faults are in fixed wiring, connections, or connected equipment. We interpret test results identifying fault types and locations.

4. Fault Isolation

Systematic isolation narrows fault location including disconnecting circuits sequentially, testing individual appliances, isolating cable sections, checking connections systematically, and monitoring for fault recurrence. Isolation testing identifies specific faulty components. We work methodically ensuring thorough investigation. Proper isolation prevents incorrect diagnosis and wasted repair effort. For complex faults across multiple circuits, comprehensive investigation may require time.

5. Root Cause Analysis

Identifying root causes prevents recurring problems including determining why faults occurred, identifying contributing factors, checking for related issues, verifying underlying electrical system adequacy, and recommending preventive measures. We don't just fix symptoms - we determine why faults happened. Root causes may include inadequate circuits, old deteriorating wiring, incorrect previous work, environmental factors, or design problems. Addressing root causes provides lasting solutions.

Common Fault Scenarios

Power Outages

Total power loss requires systematic diagnosis including checking main switch position, testing for voltage at meter box, verifying circuit breaker status, checking for blown main fuse, and testing for network supply problems. We determine if outages are internal property faults or external network issues. Internal faults may involve main switches, meter boxes, or service cables. External faults require network operator attention. We coordinate with energy providers for network faults. For Level 2 electrical work, see our Level 2 electrician services.

Flickering Lights

Flickering lights indicate various problems including loose connections in light circuits, poor neutral connections, overloaded circuits causing voltage drop, faulty dimmers or switches, and network voltage fluctuations. We test voltage stability, check connections throughout lighting circuits, measure voltage drop, and verify neutral connections. Widespread flickering across multiple circuits suggests main connection problems requiring immediate attention. Localized flickering indicates local circuit issues. For lighting upgrades, see our LED lighting services.

Dead Outlets

Non-functioning power points require fault finding including testing for voltage at outlet, checking circuit breaker status, verifying connections at outlet, testing cable continuity to outlet, and checking upstream connections. Dead outlets may result from tripped breakers, faulty outlets, broken cables, or loose connections. We trace circuits systematically identifying where power stops. Multiple dead outlets on one circuit suggest upstream problems. For new outlet installation, see our power point installation services.

Fault Finding and Repairs

After locating faults, we provide clear repair recommendations including detailed explanation of problem found, required repair work, parts needed, cost estimate, and urgency assessment. We never proceed with repairs without approval. Some faults require immediate attention for safety while others allow scheduled repair. We prioritize based on hazard level. For general repair work, visit our electrical repairs page.

For fault finding pricing, visit our pricing page or call for assessment. For commercial fault finding, see our commercial electrician services. For complete safety checks, consider our electrical safety inspections.
